1:600 Scale QUEEN ELIZABETH



Kit Review by Russell Wild





Note: This review was originally posted on the former DF in 2000. It has been revised to represent present day availability, and cost. Reproduced with permission.





R.M.S. QUEEN ELIZABETH Brief History

The 83,673 ton QUEEN ELIZABETH', the largest liner in the world at that time, was built by John Brown and Company at Clydebank, Scotland, and launched on September 27th, 1938, by Her Majesty the Queen Elizabeth the Queen Mother. Her maiden voyage was a secret wartime affair, when painted grey; she left the Clyde for New York on March 2nd 1940. She served as a troop ship throughout the 2nd world war, and carried during that time 811,324 passengers and steamed 492,635 nautical miles, Among the many ports she visited during her war service were Trinidad, Cape Town, Singapore, Freemantle, Sydney, Trincomalee, Suez, Auckland, Vancouver, San Francisco, Rio de Janeiro and Freetown.

After the war the 'QUEEN ELIZABETH' was completely reconditioned, and on October l6th, 1946, she left Southampton for New York on her first commercial voyage. She then sailed regularly in the Cunard Line's express service between Southampton, Cherbourg and New York.

The 'QUEEN ELIZABETH' was 1031ff long (lift 6in longer than her Sister ship 'QUEEN MARY', almost SOft greater than the height of the Eiffel Tower and almost three times the height of St. Paul's Cathedral). Her height, from keel to masthead, was 234ff and her Promenade Deck was 724ft long. She had 13 decks and provided accommodation for more than 2000 passengers in First, Cabin and Tourist Classes. Her officers and crew totaled 1290.There were a total of 37 public rooms, ranging from the magnificent Main Lounge and the splendid First Class Restaurant, which seated in excess of 800 people, to the Cinema Theatre were almost 350 passengers could watch the latest films as they crossed the Atlantic. She had two indoor swimming pools and three libraries, Shops, ladies' and gentlemen’s' hairdressing saloons, beauty parlors, children's playrooms and Turkish Baths. A newspaper was printed on board, and published each day of the voyage. Her main engines consisted, four sets of single reduction geared turbines, developing 160,000 shaft horse power, driving four propellers each weighing 32 tons and 18ff in diameter.



Scale Size: 1:600 (Almost 21 inches long)

Manufacturer: Airfix

Kit Number: 06201

Price: £11 GBP (British pounds) / $20.00 US / $26.00 Canadian (approximately)

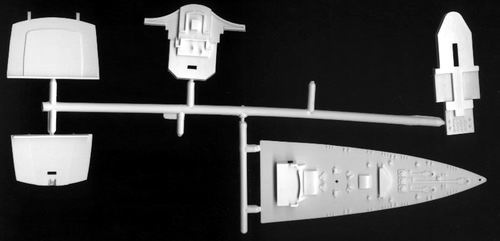

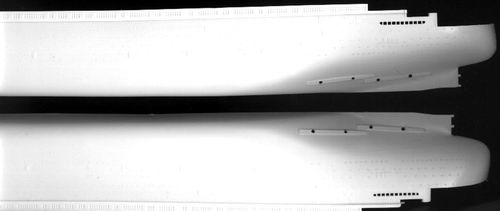

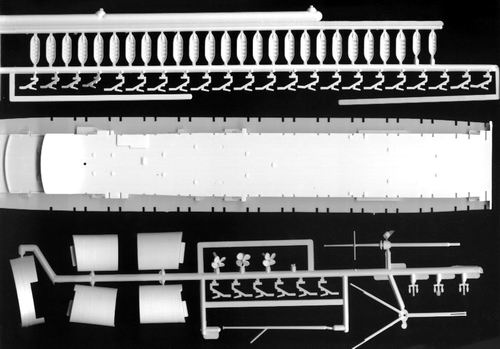

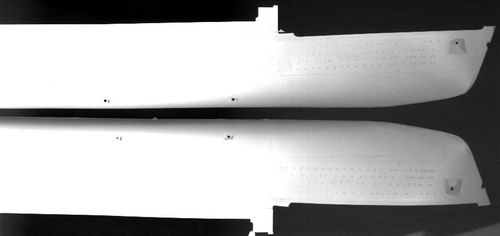

Parts List: 129 parts in total: Forecastle, three stern decks, boat deck/sun deck combined piece, two hull halves, prop shafts (each shaft is two parts), propellers (4), rudder, two stacks (2 halves each), stack tops, five pieces which assemble into the bridge area, funnel deck houses, aft deck house with skylight, stabilizers (4), various vents, two masts (foremast is two pieces), anchors (3), flagstaffs (2), docking bridge, 24 full sized boats, 2 smaller boats, two davits per boat, two stand legs.





Decals Rating: 4/5

Adequate but nothing to get excited about. Contains nameplates, decent draft marks (unlike the Mauretania kit), tennis courts shuffleboard markings (not sure about that one). The kit also includes a small sheet containing all the necessary flags you might require.



Ease of construction Rating: 5/5

Excellent ease of construction for beginners and experts alike. The parts fit together as shown in the guide, and don't require filing or filling at all. The seams can be puttied and wet n' dried, but that is only an optional extra.

Ease for conversion = Not applicable. A while back there was a discussion about the possibility of converting a QM into a QE and vice versa. This is impossible - you might as well convert Titanic in QE; it would require the same amount of work. One possibility is "converting" the model into QE's wartime configuration.



Crispness of molded parts Rating: 4/5

Excellently molded parts, although there is some flash (which can be removed in 5 minutes with a file or sanding block). Detailing is good, but conforms with Airfix's usual standard - a distinct lack of windows and railings. Apart from that the detailing is good, and you can see winches, anchor gear, skylights and bollards / capstans.





Things you like: The size of it. There can't be many 1:600 kits around which can claim to be almost a full 21 inches in length! The price is also very reasonable for this type of kit (£11 GBP). Also the plastic is soft without being too soft - it is easy to kit if necessary, but isn't so soft that it distorts while building.

Things you would like to see it have: Windows and doors for a start. It would also be nice if the hull detail could be improved (proper plating would be nice). A picture to illustrate the rigging would be nice too, for advanced modelers. Some of the mushroom vents shown on photos of the ship are simply represented by "stubs" on the model. These could be improved.

Overall Comments: Rating 5/5. An excellent kit whose many good points outshine its shortcomings. With a small amount of work from the modelers it should be possible to turn this classic into something really special. It also makes an awesome accompaniment to Revell's RMS Queen Mary kit.



RW / 2001
